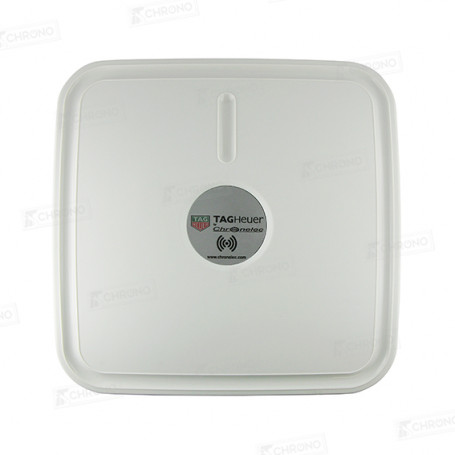

Protime RF Decoder

We no longer market this product.

The RF decoder for use with RF, RF-I and RF-S transponders only with an active loop, ideal tool for race inside or outside in a difficult environment

2 years warranty

Fast delivery with Chronopost

Return within 14 days

Description

In contrast to existing induction systems (RC, RT, LS and ELITE) the new system is not subject to external disturbances.

It's the ideal solution for cycling, triathlon or athletics. The system can also be used for motocross, karting or supermoto.

A loop placed on the groud activates the transponder, then the RF decodeur receives the information from the transponder by radio.

The RF decoder is able to detect up to 50 transponders in the same tenth of a second.

Technical specificationsLoops management (1 to 8)
Resolution: 0.001 s
Clock stability: Oscillator TCXO 0.5 ppm
Temperature: -20°C to 55°C (-4°F to 131°F)
Dimensions : 276 x 272 x 94 mm (10.7 x 10.8 x 307 in)
Weight : 1570 g
Dual frequency between 868 MHz and 915 MHz

Power supply :

12 VDC

Connections

1 BNC (loop power supply)
1 photocell input
1 entry Manual
1 audio output
1 output RJ45 Ethernet
