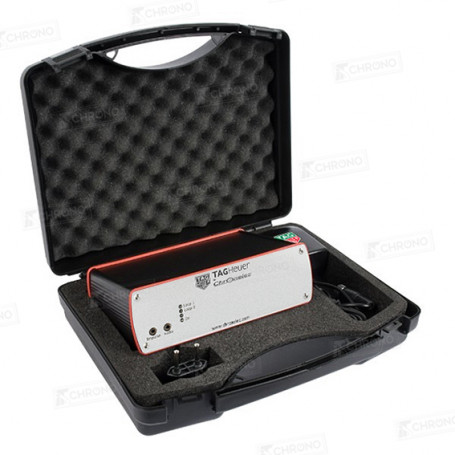

Distant Decoder 2 inputs loops

The decoder provides intermediate times ("split times") on a circuit. The decoder can be connected with a RS485 network or a radio network.

2 loops can be connected to this decoder.

Once a passing is detected on the distant decoder it is securely reported to the main decoder. Up to 32 distant decoders can be used on your circuit.

Features :

Clock stability : Oscillator TCXO 0.5 ppm
Temperature range : -20 to 55°C (-4 to 131°F)
Dimensions : 160 x 100 x 52 mm (6.3 x 3.9 x 2 in)
Resolution : 0.001 s

Power supply :

12 VDC

Connections :

2 loops input
1 photocell input
1 manual input
1 audio output
1 AUX output
1 RS485 or RS232 output

Warranty 2 years
