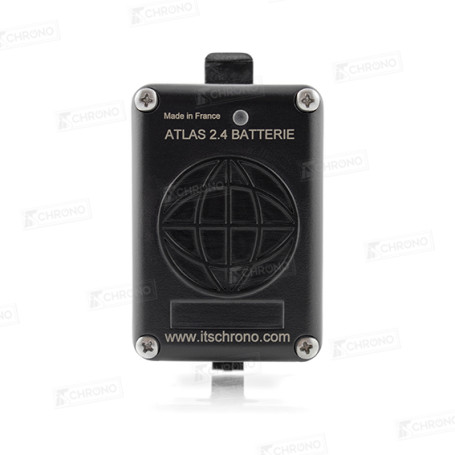

Atlas 2.4 GPS Batt module
Improve the safety and tracking of your race with the brand new innovative Atlas 2.4 GHz GPS tracking system developed by ITS Chrono.
Provide unprecedented control to the race direction (speed in the pits, management of false starts, possibility to replay a moment of the race, ...), offer precise information on the vehicles (position in real time, information on acceleration, braking, ...) and offer to the spectators a unique moment closer to the drivers (live tracking, data on a vehicle identified in real time, ...).
The kit includes a GPS Atlas 2.4 GHz module, a power cable, a WiFi-GPS remote antenna.
For more information : CONTACT US
Description
Atlas 2.4 GPS system
Main features :
- Provides the positions of each competitor live
- Tracks progress of the race in real time
- Records information of time, positions, speeds and «g»
- Traces the route of each competitor on an interactive map
Technology employed : XBEE 2,4 GHz
GNSS compatibility : BeiDou / Galileo / GLONASS / GPS
Speed precision : 0,18 km/h
Antenna types : WiFi 2,4 GHz / GPS Active
GNSS frequency used : 10 Hz
Accelerometer sensitivity : 0,048 G
Atlas 2.4 GPS Module
Battery : 1000 mAh
Charge : 4h
Autonomy : 5h
Waterproof : IP64
2 G sensor : +-16G / +-100G
Technology employed : XBEE 2,4 GHz
Speed precision : 0,18 km/h
Antenna types : WiFi 2,4 GHz / GPS Active
Accelerometer sensitivity : 0,048 G
Dimensions of the module : without support 75 x 43 x 23 mm / with support 90 x 60 x 30 mm
Weight module : 55 g
Weight support + clip : 9,7 g
Consumption : 200 mAh
Precision : 10 positions/s
Fixation : Suport and clip
Maximum satellites detected : 96
Maximum frequency of sending to the coordinator : 10 Hz (100 Hz for a single module)
Warranty : 2 years
Technical specifications
Technical specifications
- Width
- 43 mm
- Weight
- 55 g
- Thickness
- 23 mm
- Lenght
- 75 mm
