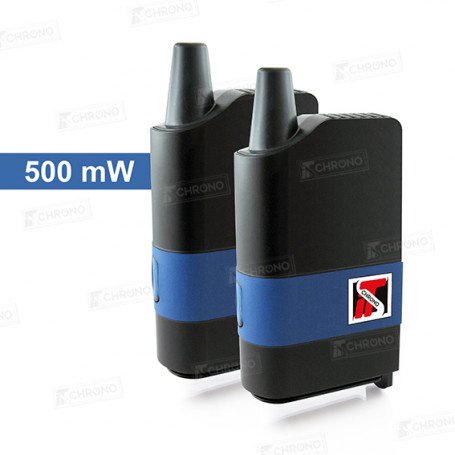

Kit Wireless Modem 500 mW
This Modem Kit will allow you to control wireless your panel (RS232 or RS485) over a distance of up to 20 km.
Operating on 863-870 MHz, these modem is certified and can be used without license.
Certified, the modems comply with the 2010 edition of the European Directive RTTE EN300-220.
€1,285.00 tax excl.
€1,542.00
Tax included
2 years warranty
Fast delivery with Chronopost
Return within 14 days
Description
Performances :
- Range : 20 km
- RF flow rates : 2.4 to 57.6 kbps
Common specifications :
- Power : 500mW
- Frequencies : 863-870MHz
General informations :
- High transmission reliability
- RS232/RS485 or USB serial port
- Multi-mode communication: Transparent, addressed, repeater
- Compatible with the MODBUS protocol
- HF Power: 500mW
- +500 channels @ 14dBm
- External power supply
- Throughput: 1.2-115.2kbps
- Dimensions: 135 x 75 x 35mm (integrated antenna)
- Box : IP41
- Option : IP53 and IP67
Consumption & needs :
- Power supply : 240mA (TX@27dBm / 12V)
Technical specifications
ITS500MW
20 cm
5 cm
10 cm
0.90 kg
